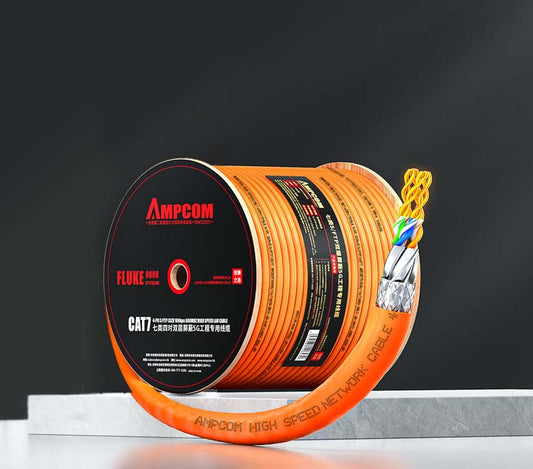

When the demand for shielding from electromagnetic interference (EMI) and even higher bandwidth became critical, Category 7 (Cat7) cabling emerged. Defined primarily by the ISO/IEC 11801 Amendment 4, Cat7 represents a significant departure from previous categories by mandating shielding at every level and setting new performance benchmarks. The execution of this standard ensures an "end-to-end" channel that is robust, high-speed, and shielded from noise, delivering uncompromised signal integrity.

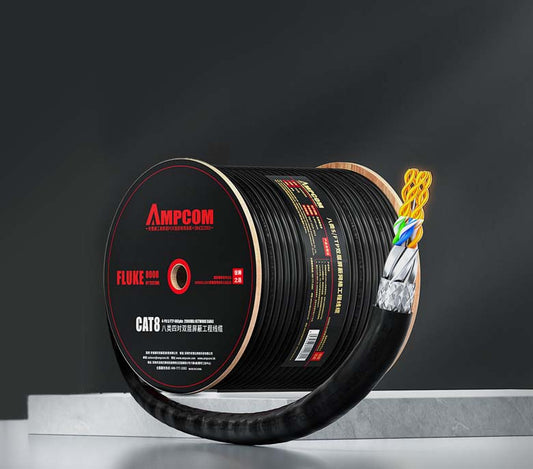

Data Center Supersonic: Cat8 Network Cables Defining 40G/100G Direct Connect in Copper

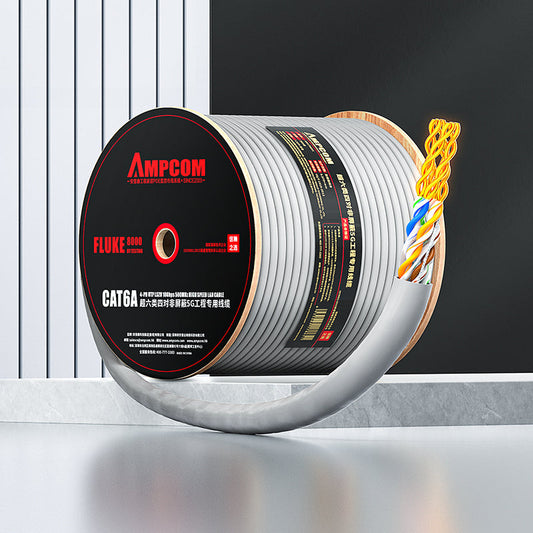

Future-Proofing Connectivity: Cat6a Network Cables Building the Foundation for 10G Everywhere

More than gigabit network cable routing: Cat6 International Standard Execution Paves the Golden Path for 10G Networks

Understanding The Global Network Cables Consensus: Cat5e International Standard Defines The "Sufficient" Era

Key Parameters and the Shielding Mandate

Cat7's standards introduce several defining characteristics:

• Frequency: Operates up to 600 MHz, significantly higher than Cat6a's 500 MHz.
• Speed: Capable of supporting 10 Gbps Ethernet (10GBASE-T) over the full 100 meters, and even higher speeds like 25 Gbps and 40 Gbps over shorter distances (e.g., up to 15 meters) using specific, often proprietary, connections.
• Full Shielding Requirement: This is Cat7's hallmark. The standard mandates that both the individual wire pairs *and* the overall cable jacket be shielded. This typically results in two types: Screened Twisted Pair (STP) with overall foil shield and braided drain wire, or Foil Twisted Pair (FTP) with individual pair shields and an overall foil shield. This dual shielding dramatically reduces both external EMI pickup and crosstalk between adjacent cables.
• Strict Interface Specifications: Cat7 standards specify unique, non-standard connectors (often called GG-45 or TERA) designed to maintain the shielding integrity right up to the connection point. Standard RJ45 connectors are not compliant with the Cat7 channel standard as they cannot maintain the required shielding continuity.
• Enhanced Performance Metrics: Even with shielding, the standards impose very tight limits on NEXT, PSNEXT, ACR, and Return Loss across the entire frequency range, ensuring superior signal quality.

The rigorous testing mandated by the ISO/IEC 11801 standard ensures that a properly installed Cat7 channel meets these demanding specifications, providing a level of performance and reliability unmatched by unshielded categories.

Application Scenarios: Where Shielding and High Speed Reign

Cat7's combination of high bandwidth and comprehensive shielding makes it ideal for specific, demanding environments:

• High-Frequency Trading Floors: Where nanosecond-level latency and absolute signal integrity are critical.
• Industrial Environments: Areas with high levels of electrical noise from machinery and equipment.
• Medical Facilities: Connecting sensitive medical imaging equipment and life-support systems where signal integrity is non-negotiable.
• Professional Audio/Video Studios: For connecting high-resolution cameras, audio consoles, and storage arrays where interference can ruin signal quality.
• Secure Environments: Facilities where preventing signal leakage (and potential eavesdropping) is a concern.

A Case Study: The Broadcast Studio

"Visionary Media Productions" operates a state-of-the-art broadcast studio. Their challenge was to connect numerous high-definition cameras, audio mixing consoles, and server racks without any signal degradation, especially given the proximity of powerful lighting and power distribution systems.

The engineering team specified Cat7 cabling with TERA connectors, adhering strictly to the ISO/IEC 11801 Amendment 4 standard. The decision was driven by the need for the comprehensive shielding Cat7 provides against the studio's inherent EMI. They used certified Cat7 components and ensured proper grounding techniques were followed during installation to maintain the shield's effectiveness.

The result was a network infrastructure that delivered pristine, interference-free video and audio feeds, even during complex multi-camera productions. The execution of the Cat7 standard provided the high-fidelity data channel they demanded, proving its value in an environment where quality is paramount.

Cat7, through the rigorous execution of its international standards, offers an unparalleled copper cabling solution for environments where signal integrity and shielding are paramount. While its specialized connectors and potentially higher cost can be drawbacks, its performance guarantees make it the uncompromising choice for critical applications.
